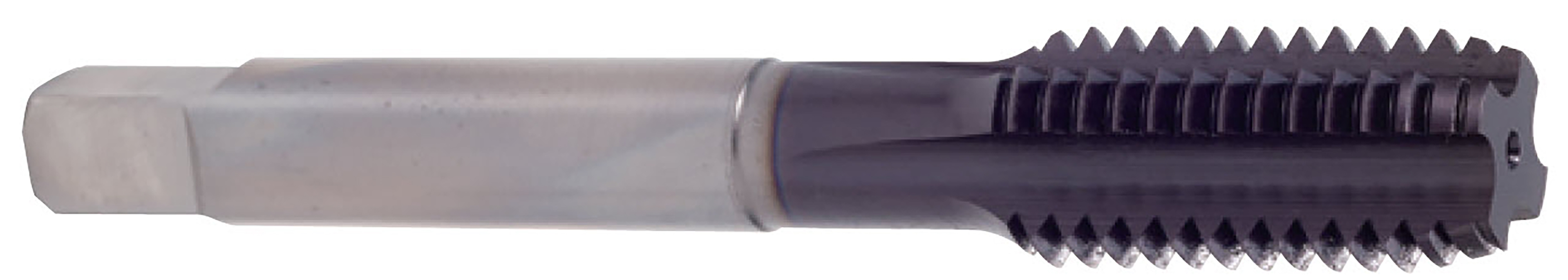

Picture of YG-1 TR284 M5-0.80mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS TiAlN

YG-1 TR284 M5-0.80mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS TiAlN

Part Number: YG-TR284
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1167253
Vendor: Sussex Tool and Supply
$19.86

Description

YG-1 TR284 M5x0.80MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS TiAlN D4 Metric Steel Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Coating TiAlN
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 0.80MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M5
Thread Limit D4
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1520
Tap Chamfer 2.0P-3.0P
