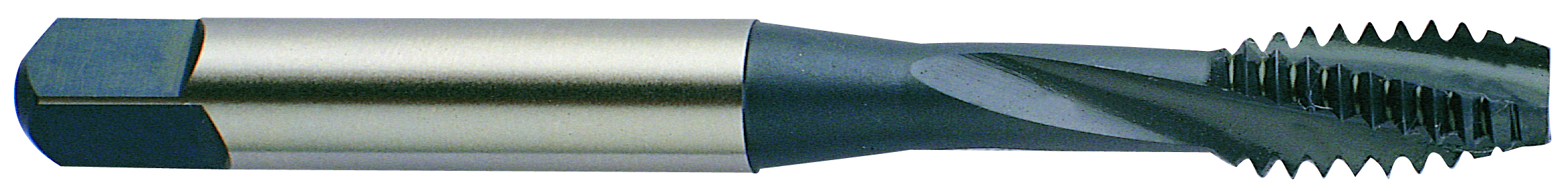

Picture of YG-1 TQ858726 M22-2.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS Steam Oxide

YG-1 TQ858726 M22-2.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS Steam Oxide

Part Number: YG-TQ858726

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1167252
Vendor: Sussex Tool and Supply
$153.78
YG-1 TQ858726 M22x2.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS Steam Oxide D6 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Coating Steam Oxide
Overall Length 4.6870 119.05MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M22
Thread Limit D6
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.7638 19.40MM - 0.7894 20.05MM
Tap Square 0.5230
Tap Chamfer 2.0P-3.0P
