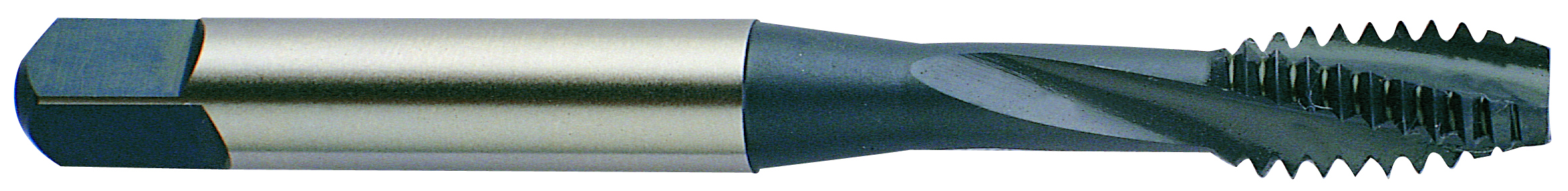

Picture of YG-1 TK858788 M24-3.00mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS TiCN

YG-1 TK858788 M24-3.00mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS TiCN

Part Number: YG-TK858788

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1167194
Vendor: Sussex Tool and Supply
$209.59
YG-1 TK858788 M24x3.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS TiCN D8 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Coating TICN
Overall Length 4.9100 124.71MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7600 19.30MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 3.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M24
Thread Limit D8
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.8220 20.88MM - 0.8528 21.66MM
Tap Square 0.5700
Tap Chamfer 2.0P-3.0P
