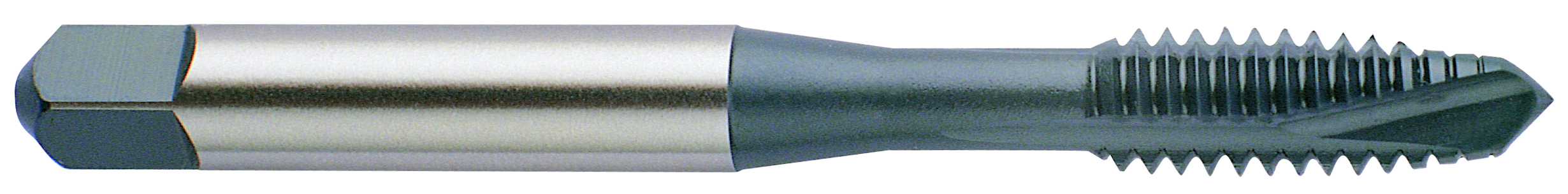

Picture of YG-1 TK808293 M5-0.50mm Cut Spiral Point Plug 4.0P-5.0P HSS TiCN

YG-1 TK808293 M5-0.50mm Cut Spiral Point Plug 4.0P-5.0P HSS TiCN

Part Number: YG-TK808293
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M5 × 0.50MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1167160
Vendor: Sussex Tool and Supply
$27.17

Description

YG-1 TK808293 M5x0.50MM Cut Spiral Point Plug 4.0P-5.0P HSS TiCN D3 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Thread Pitch 0.50MM
Thread Size M5
Tap Drill Range 0.1764 4.48MM - 0.1815 4.61MM
Tap Square 0.1520
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
