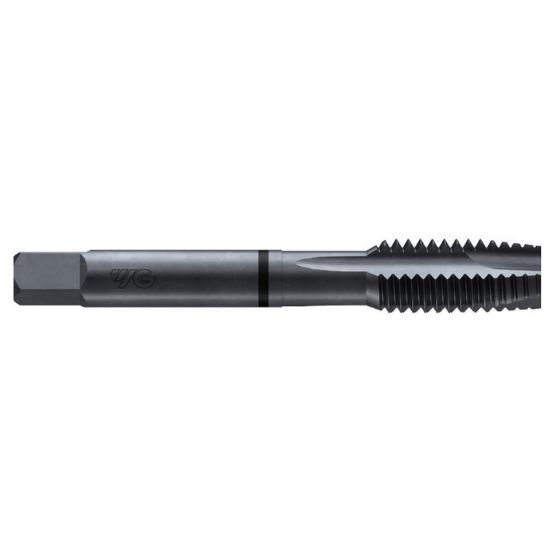

Picture of YG-1 TK224S M3.5-0.60mm Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide

YG-1 TK224S M3.5-0.60mm Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide

Part Number: YG-TK224S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1167127
Vendor: Sussex Tool and Supply
$11.33
YG-1 TK224S M3.5x0.60MM Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide D4 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-EX
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.60MM
Thread Type METRIC
Thread Size M3.5
Thread Limit D4
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1134 2.88MM - 0.1193 3.03MM
Tap Square 0.1100
Tap Chamfer 4.0P-5.0P
