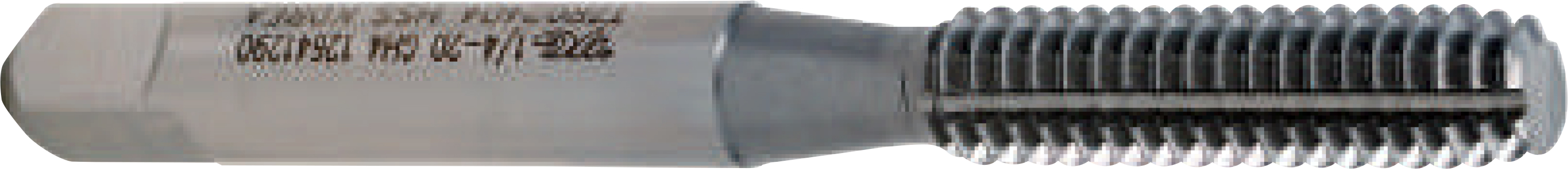

Picture of YG-1 THR02344 No.10-32.00TPI Roll Form Bottoming 1.5P-2.0P HSS TiCN

YG-1 THR02344 No.10-32.00TPI Roll Form Bottoming 1.5P-2.0P HSS TiCN

Part Number: YG-THR02344
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$14.60
SKU: 1167121

Description

YG-1 THR02344 No.10x32.00TPI Roll Form Bottoming 1.5P-2.0P HSS TiCN H4/GH4 NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.1940 4.93MM
Thread Pitch 32.00TPI
Thread Size No.10
Tap Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Tap Square 0.1520
Performance & Capacity
Cut Rating Aluminum, <30HRC Steel, Copper, Brass
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H4/GH4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
