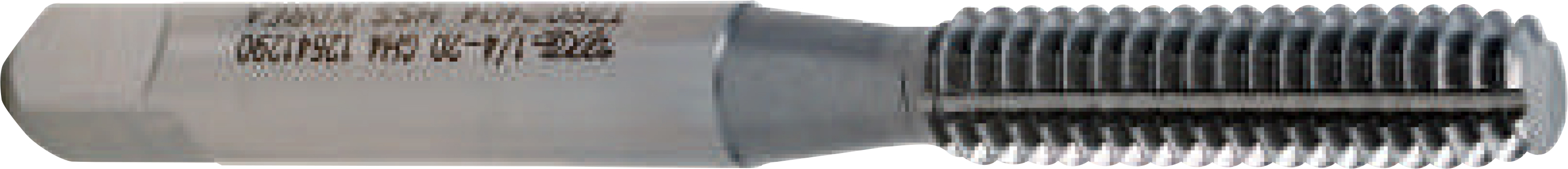

Picture of YG-1 THR02082 No.2-56.00TPI Roll Form Bottoming 1.5P-2.0P HSS TiCN

YG-1 THR02082 No.2-56.00TPI Roll Form Bottoming 1.5P-2.0P HSS TiCN

Part Number: YG-THR02082

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1167116
Vendor: Sussex Tool and Supply
$17.74

Description

YG-1 THR02082 No.2x56.00TPI Roll Form Bottoming 1.5P-2.0P HSS TiCN H2/GH2 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, <30HRC Steel, Copper, Brass
Coating TICN
Overall Length 1.7500 44.45MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 56.00TPI
Thread Type NC/UNC
Thread Size No.2
Thread Limit H2/GH2
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0768 1.95MM - 0.0791 2.01MM
Tap Square 0.1100
Tap Chamfer 1.5P-2.0P
