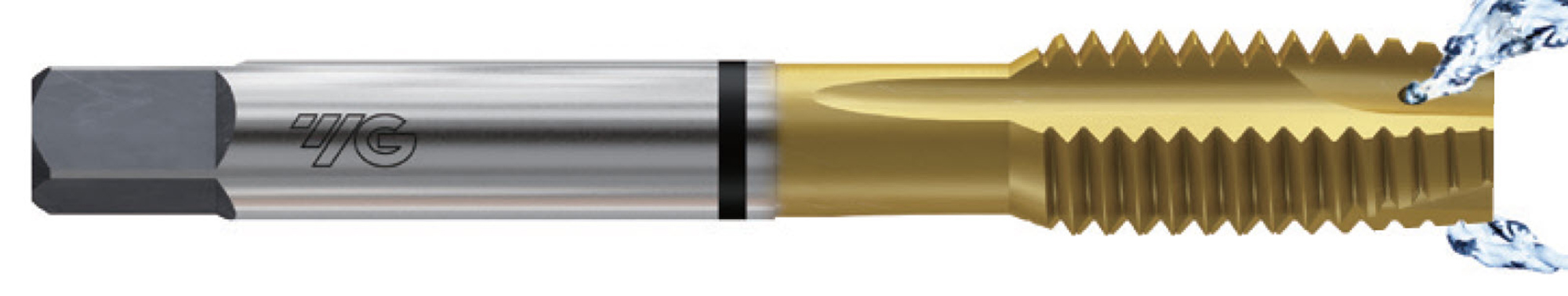

Picture of YG-1 TH315N M6-1.00mm Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiN

YG-1 TH315N M6-1.00mm Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiN

Part Number: YG-TH315N
Looking for alternatives…
Find a drill for this tap M6 × 1.00MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1167089
Vendor: Sussex Tool and Supply
$21.60

Description

YG-1 TH315N M6x1.00MM Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiN D5 Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Thread Pitch 1.00MM
Thread Size M6
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-EX
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
