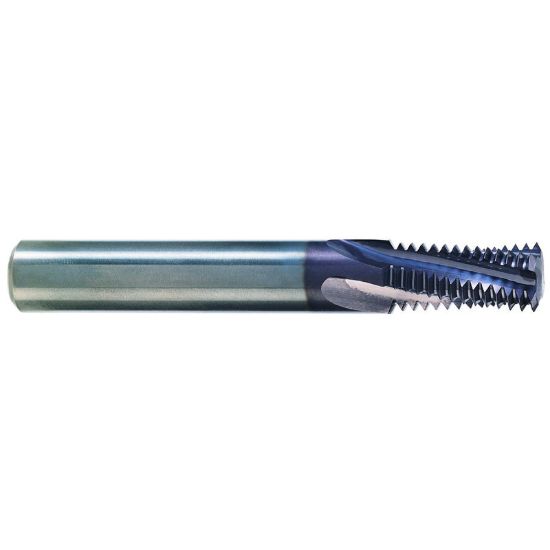

YG-1 TE520 Carbide Thread Mill 7/16" 14.00TPI 0.305 Dia 3.000 OAL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1TE520
Delivery date: 3-5 days
$212.23
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#10, Material#20, Material#5, Material#16, Material#8, Material#15
Additional Key Information 1 Mill Thread
Coating TiAlN
Shipping State Illinois
Application Thread Milling
Package Size 1
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Size 0.3120 7.92MM
Thread Size 7/16"
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 3.0000 76.20MM
Cutter Dia 0.3050 7.75MM
Machine Side CYLINDRICAL0.3125
Cutter Style Carbide Thread Mill
Thread Type UN
Thread Pitch 14.00TPI
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
