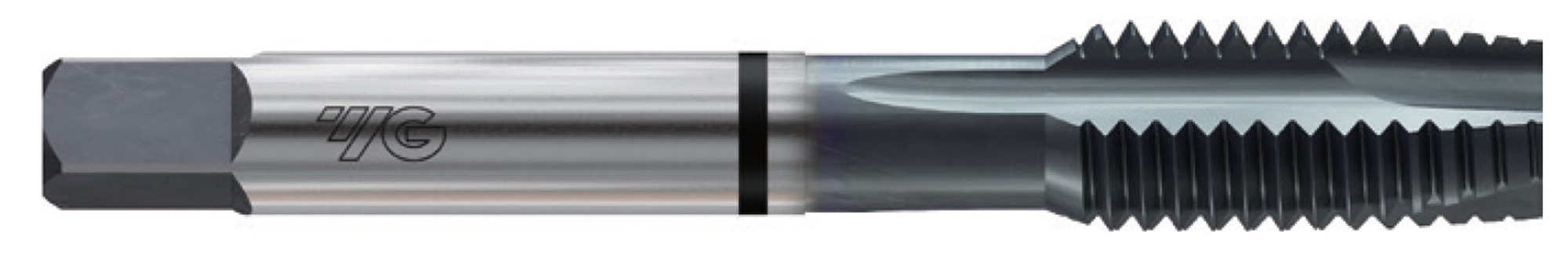

Picture of YG-1 TCH607C M16-2.00mm Cut Spiral Point Plug 4.0P Super HSS TiCN

YG-1 TCH607C M16-2.00mm Cut Spiral Point Plug 4.0P Super HSS TiCN

Part Number: YG-TCH607C
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1167080
Vendor: Sussex Tool and Supply
$61.21

Description

YG-1 TCH607C M16x2.00MM Cut Spiral Point Plug 4.0P Super HSS TiCN D7 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P
Dimensions & Sizing
Overall Length 3.8120 96.82MM
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Thread Pitch 2.00MM
Thread Size M16
Tap Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Tap Square 0.3600
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D7
Materials & Finish
Tool Material Steel
Cutting Edge Mat Super HSS
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
