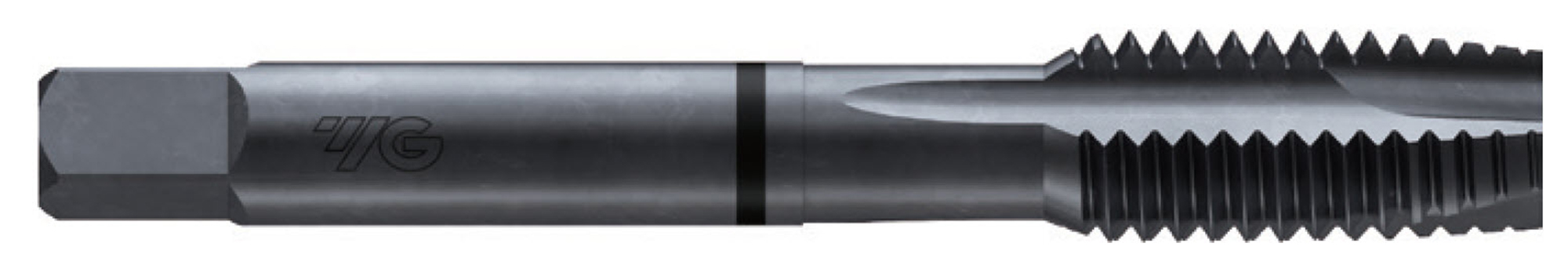

Picture of YG-1 TCE243S No.6-32.00TPI Cut Spiral Point Plug 4.0P Super HSS Steam Oxide

YG-1 TCE243S No.6-32.00TPI Cut Spiral Point Plug 4.0P Super HSS Steam Oxide

Part Number: YG-TCE243S
Looking for alternatives…
Find a drill for this tap No.6 × 32.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1166987
Vendor: Sussex Tool and Supply
$20.54

Description

YG-1 TCE243S No.6x32.00TPI Cut Spiral Point Plug 4.0P Super HSS Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Thread Pitch 32.00TPI
Thread Size No.6
Tap Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Tap Square 0.1100
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat Super HSS
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
