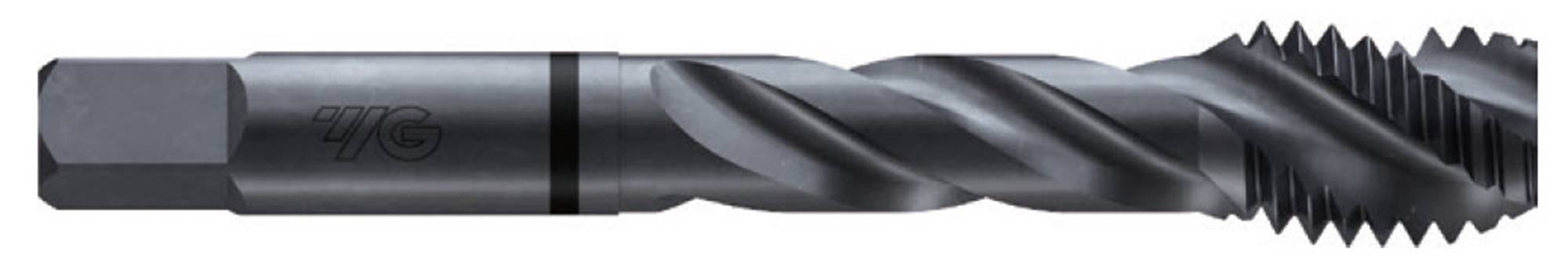

Picture of YG-1 TCD616S M16-1.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Steam Oxide

YG-1 TCD616S M16-1.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Steam Oxide

Part Number: YG-TCD616S
Looking for alternatives…
Find a drill for this tap M16 × 1.50MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1166977
Vendor: Sussex Tool and Supply
$58.91

Description

YG-1 TCD616S M16x1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Steam Oxide D6 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.8120 96.82MM
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Thread Pitch 1.50MM
Thread Size M16
Tap Drill Range 0.5724 14.54MM - 0.5839 14.83MM
Tap Square 0.3600
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D6
Materials & Finish
Tool Material Steel
Cutting Edge Mat Super HSS
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
