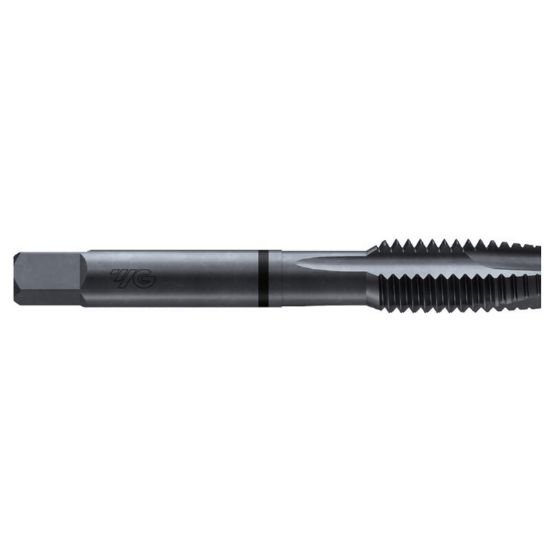

Picture of YG-1 TC405S 1/4-20.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide

YG-1 TC405S 1/4-20.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide

Part Number: YG-TC405S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1166827
Vendor: Sussex Tool and Supply
$14.54
YG-1 TC405S 1/4"x20.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide H5/GH5 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-EX
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 3.1560 80.16MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Size 1/4"
Thread Limit H5/GH5
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1910
Tap Chamfer 4.0P-5.0P
