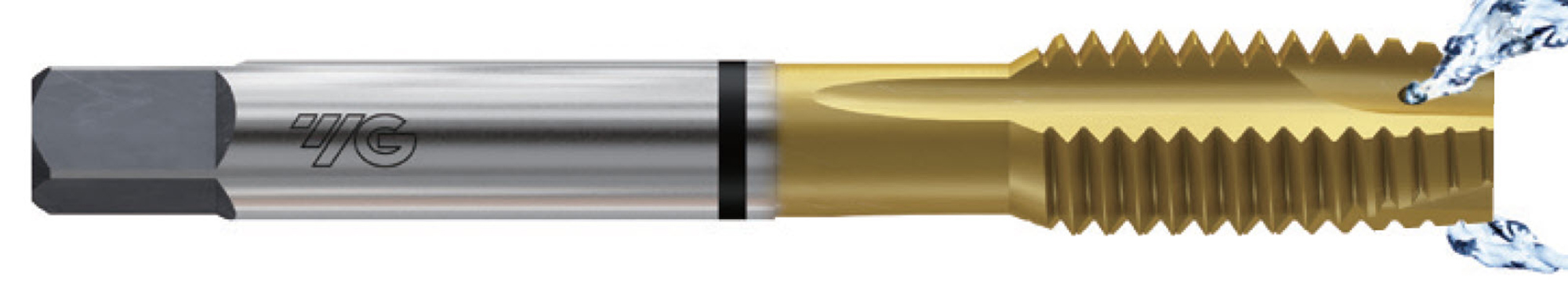

Picture of YG-1 TB766N 7/8-14.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiN

YG-1 TB766N 7/8-14.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiN

Part Number: YG-TB766N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1166805
Vendor: Sussex Tool and Supply
$104.07
YG-1 TB766N 7/8"x14.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiN H6/GH6 NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-EX
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TIN
Overall Length 4.6870 119.05MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type NF/UNF/UNEF
Thread Size 7/8"
Thread Limit H6/GH6
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5230
Tap Chamfer 4.0P-5.0P
