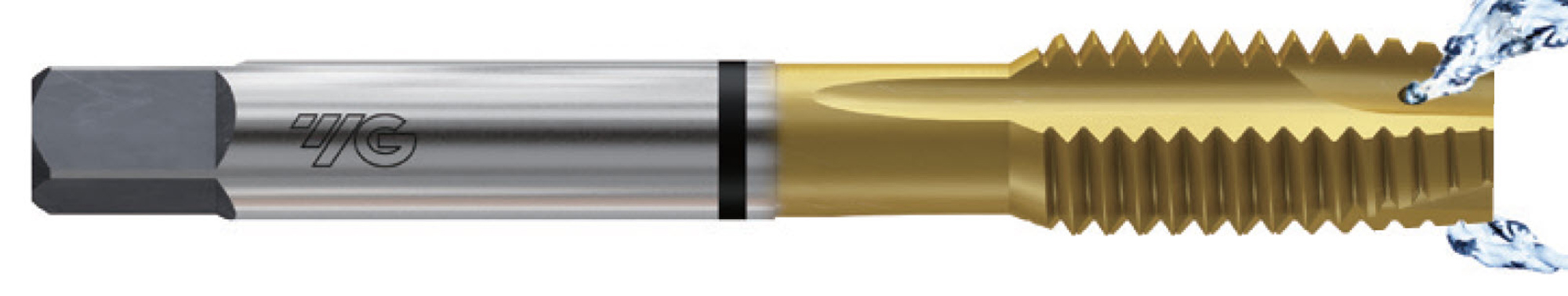

Picture of YG-1 TB424N 1/4-28.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiN

YG-1 TB424N 1/4-28.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiN

Part Number: YG-TB424N
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1166773
Vendor: Sussex Tool and Supply
$20.17

Description

YG-1 TB424N 1/4"x28.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiN H4/GH4 NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Thread Pitch 28.00TPI
Thread Size 1/4"
Tap Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Tap Square 0.1910
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H4/GH4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-EX
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
