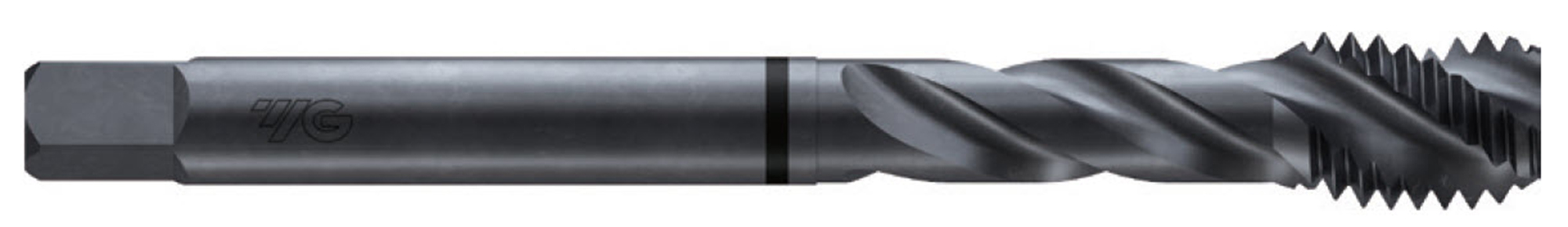

Picture of YG-1 TA547S M14-2.00mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Steam Oxide

YG-1 TA547S M14-2.00mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Steam Oxide

Part Number: YG-TA547S
Looking for alternatives…
Find a drill for this tap M14 × 2.00MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1166759
Vendor: Sussex Tool and Supply
$59.61

Description

YG-1 TA547S M14x2.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Steam Oxide D7 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.3310 110.01MM
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 3
Thread Pitch 2.00MM
Thread Size M14
Tap Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Tap Square 0.3220
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D7
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-EX
Coating Steam Oxide
Standards & Identification
Dimension Standard DINSI
