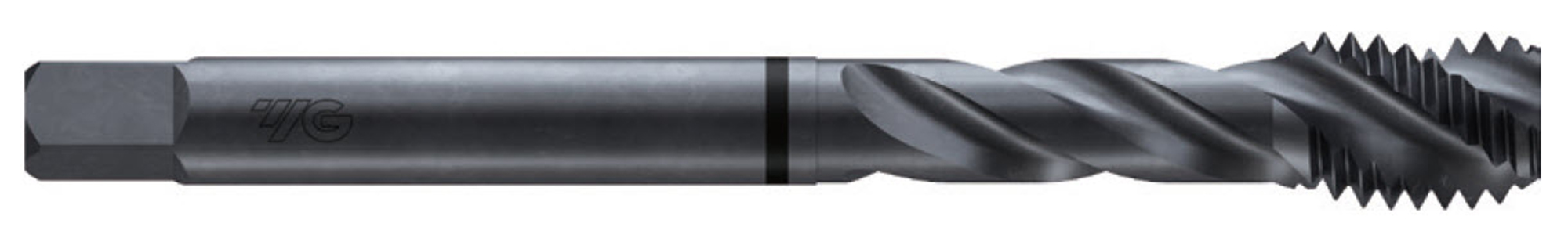

Picture of YG-1 TA435S M10-1.25mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Steam Oxide

YG-1 TA435S M10-1.25mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Steam Oxide

Part Number: YG-TA435S
Looking for alternatives…
Find a drill for this tap M10 × 1.25MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1166753
Vendor: Sussex Tool and Supply
$22.71

Description

YG-1 TA435S M10x1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Steam Oxide D5 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Thread Pitch 1.25MM
Thread Size M10
Tap Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Tap Square 0.2860
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-EX
Coating Steam Oxide
Standards & Identification
Dimension Standard DINSI
