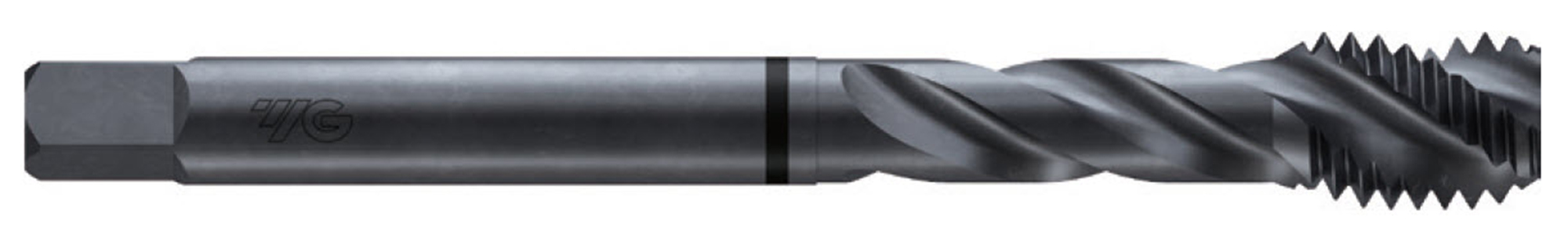

Picture of YG-1 TA315S M6-1.00mm Cut Spiral Flute Bottoming 2.0P-3.0P HSS-EX Steam Oxide

YG-1 TA315S M6-1.00mm Cut Spiral Flute Bottoming 2.0P-3.0P HSS-EX Steam Oxide

Part Number: YG-TA315S
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1166747
Vendor: Sussex Tool and Supply
$18.01

Description

YG-1 TA315S M6x1.00MM Cut Spiral Flute Bottoming 2.0P-3.0P HSS-EX Steam Oxide D5 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-EX
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 3.1560 80.16MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.00MM
Thread Type METRIC
Thread Size M6
Thread Limit D5
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Tap Chamfer 2.0P-3.0P
