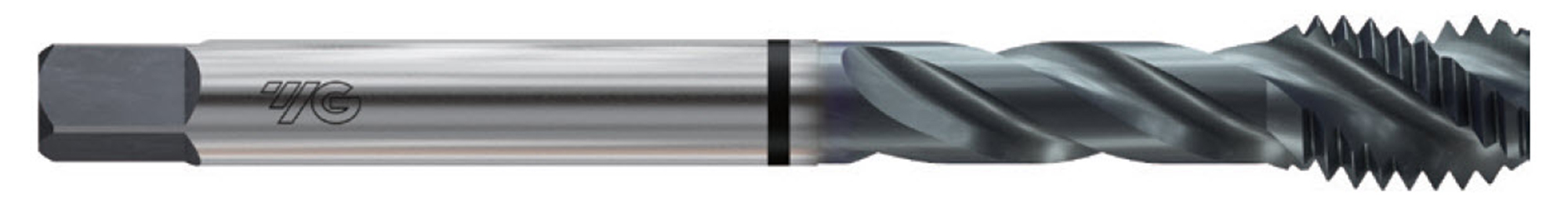

Picture of YG-1 TA284C M5-0.80mm Cut Spiral Flute Bottoming 2.0P-3.0P HSS-EX TiCN

YG-1 TA284C M5-0.80mm Cut Spiral Flute Bottoming 2.0P-3.0P HSS-EX TiCN

Part Number: YG-TA284C
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1166744
Vendor: Sussex Tool and Supply
$20.24

Description

YG-1 TA284C M5x0.80MM Cut Spiral Flute Bottoming 2.0P-3.0P HSS-EX TiCN D4 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Thread Pitch 0.80MM
Thread Size M5
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1520
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-EX
Coating TICN
Standards & Identification
Dimension Standard DINSI
