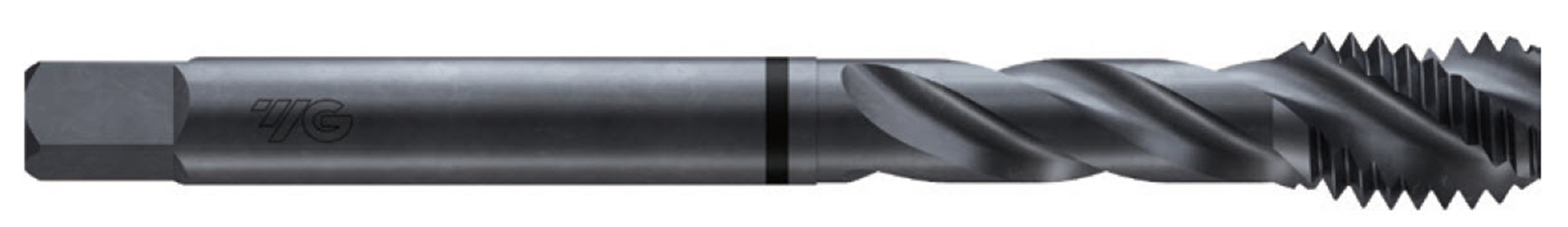

Picture of YG-1 TA244S M4-0.70mm Cut Spiral Flute Bottoming 2.0P-3.0P HSS-EX Steam Oxide

YG-1 TA244S M4-0.70mm Cut Spiral Flute Bottoming 2.0P-3.0P HSS-EX Steam Oxide

Part Number: YG-TA244S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1166743
Vendor: Sussex Tool and Supply
$14.86
YG-1 TA244S M4x0.70MM Cut Spiral Flute Bottoming 2.0P-3.0P HSS-EX Steam Oxide D4 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-EX
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 2.4800 62.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.70MM
Thread Type METRIC
Thread Size M4
Thread Limit D4
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1520
Tap Chamfer 2.0P-3.0P
