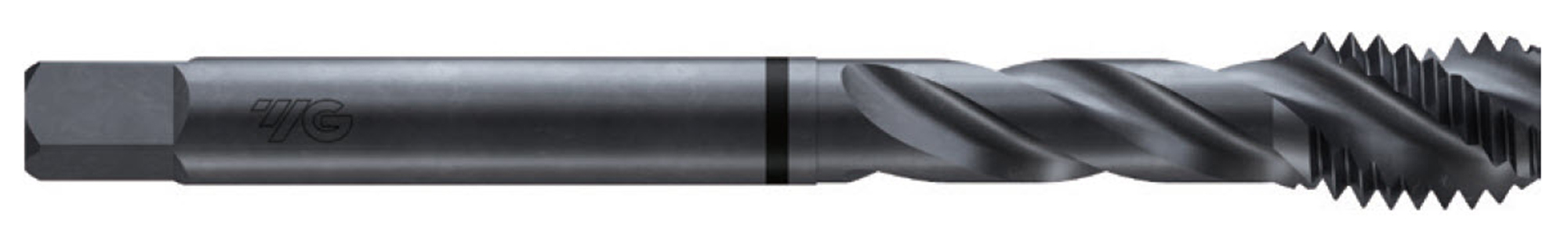

Picture of YG-1 TA224S M3.5-0.60mm Cut Spiral Flute Bottoming 2.0P-3.0P HSS-EX Steam Oxide

YG-1 TA224S M3.5-0.60mm Cut Spiral Flute Bottoming 2.0P-3.0P HSS-EX Steam Oxide

Part Number: YG-TA224S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1166741
Vendor: Sussex Tool and Supply
$14.86
YG-1 TA224S M3.5x0.60MM Cut Spiral Flute Bottoming 2.0P-3.0P HSS-EX Steam Oxide D4 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-EX
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 2.2050 56.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.60MM
Thread Type METRIC
Thread Size M3.5
Thread Limit D4
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.1134 2.88MM - 0.1193 3.03MM
Tap Square 0.1100
Tap Chamfer 2.0P-3.0P
