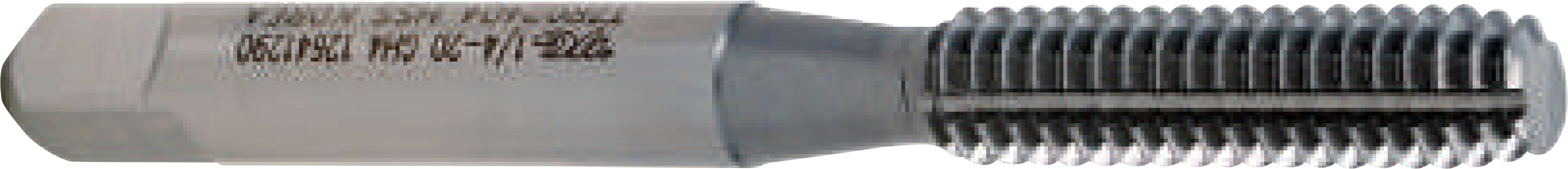

Picture of YG-1 T8R02404 1/4-20.00TPI Roll Form Bottoming 1.5P-2.0P HSS TiN

YG-1 T8R02404 1/4-20.00TPI Roll Form Bottoming 1.5P-2.0P HSS TiN

Part Number: YG-T8R02404
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$14.20
SKU: 1166688

Description

YG-1 T8R02404 1/4"x20.00TPI Roll Form Bottoming 1.5P-2.0P HSS TiN H4/GH4 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2550 6.48MM
Thread Pitch 20.00TPI
Thread Size 1/4"
Tap Drill Range 0.2244 5.70MM - 0.2311 5.87MM
Tap Square 0.1910
Performance & Capacity
Cut Rating Aluminum, <30HRC Steel, Copper, Brass
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H4/GH4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
