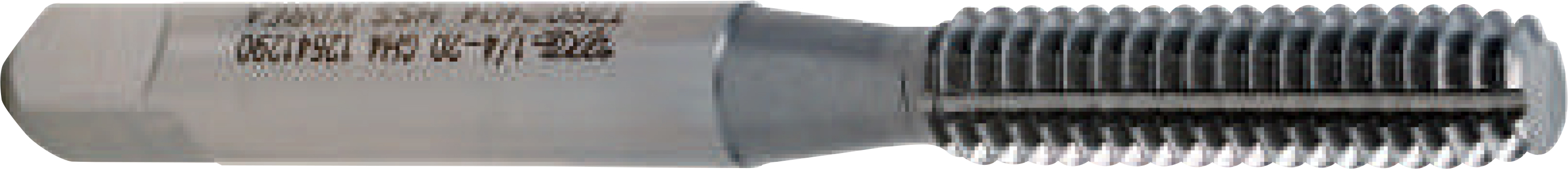

Picture of YG-1 T7R02445 5/16-18.00TPI Roll Form Bottoming 1.5P-2.0P HSS Uncoated

YG-1 T7R02445 5/16-18.00TPI Roll Form Bottoming 1.5P-2.0P HSS Uncoated

Part Number: YG-T7R02445
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$14.27
SKU: 1166296

Description

YG-1 T7R02445 5/16"x18.00TPI Roll Form Bottoming 1.5P-2.0P HSS Uncoated H5/GH5 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 2.7200 69.09MM
Shank/Pilot Dia 0.3180 8.08MM
Thread Pitch 18.00TPI
Thread Size 5/16"
Tap Drill Range 0.2839 7.21MM - 0.2913 7.40MM
Tap Square 0.2380
Performance & Capacity
Cut Rating <40HRC Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
