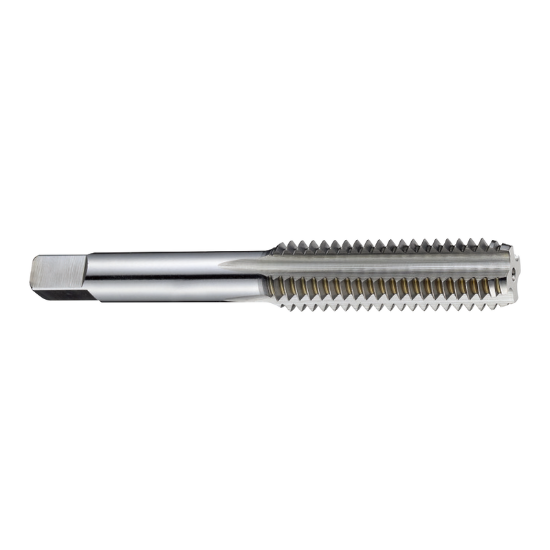

YG-1 T7B16408H5 1/4-20.00TPI Hand Tap Bottoming 2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7B16408H5
Delivery date: 3-5 days
$6.80
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#2, Material#8, Material#16, Material#22, Material#20
Sold by Pieces 1
Application Blind Hole Tapping, Bottom Tapping, Cut Tapping, Tapping
Package Size 1
Shipping State Illinois
Additional Key Information 1 Tapping
Performance Rating General Performance
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Length Type Standard
Tap Style Hand Tap
Tap Type Bottoming
Thread Size 1/4"
Tap Chamfer 2.0P
Thread Pitch 20.00TPI
Thread Type NC/UNC
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Machine Side TAP0.191x0.255
Flutes/Inserts 3
Shank/Pilot Dia 0.2550 6.48MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
