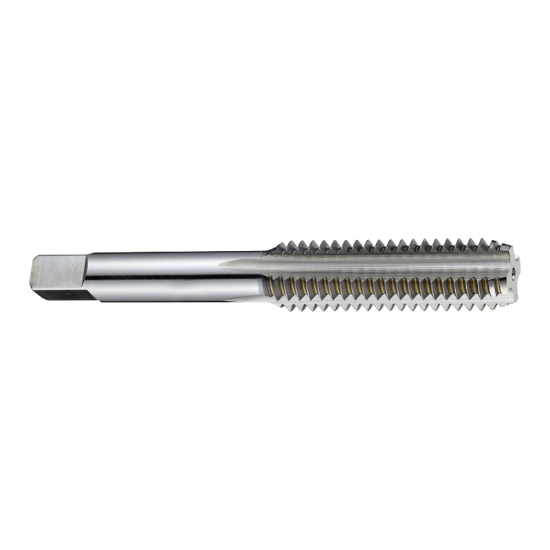

YG-1 T7A16348 No.10-32.00TPI Hand Tap Plug 2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7A16348
Delivery date: 3-5 days
$6.26
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Material # Material#16, Material#20, Material#2, Material#8, Material#22
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Additional Key Information 1 Tapping
Sold by Pieces 1
Performance Rating General Performance
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Thread Limit H3/GH3
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 2
Tap Style Hand Tap
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Machine Side Connection Type Tap Collet
Overall Len 2.3750 60.33MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Tap Type Plug
Thread Size No.10
Machine Side TAP0.152x0.194
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Chamfer 2.0P
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
