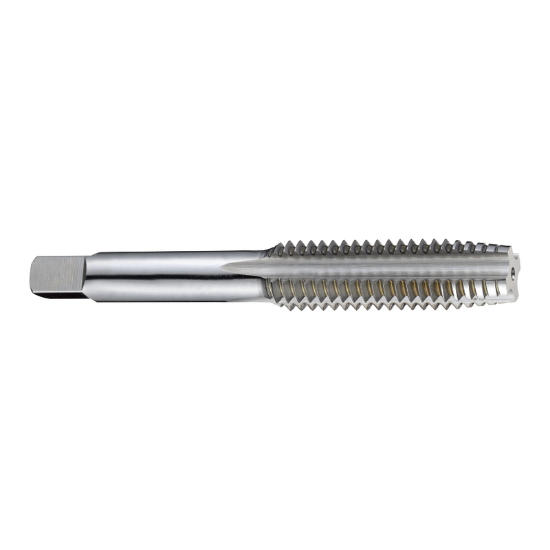

YG-1 T7A16347H1 No.10-32.00TPI Hand Tap Plug 5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7A16347H1
Delivery date: 3-5 days
$6.26
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Material # Material#2, Material#8, Material#22, Material#16, Material#20
Additional Key Information 1 Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Thread Pitch 32.00TPI
Tap Chamfer 5.0P
Thread Limit H1/GH1
Machine Side TAP0.152x0.194
Machine Side Connection Type Tap Collet
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 2
Length Type Standard
Tap Style Hand Tap
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
