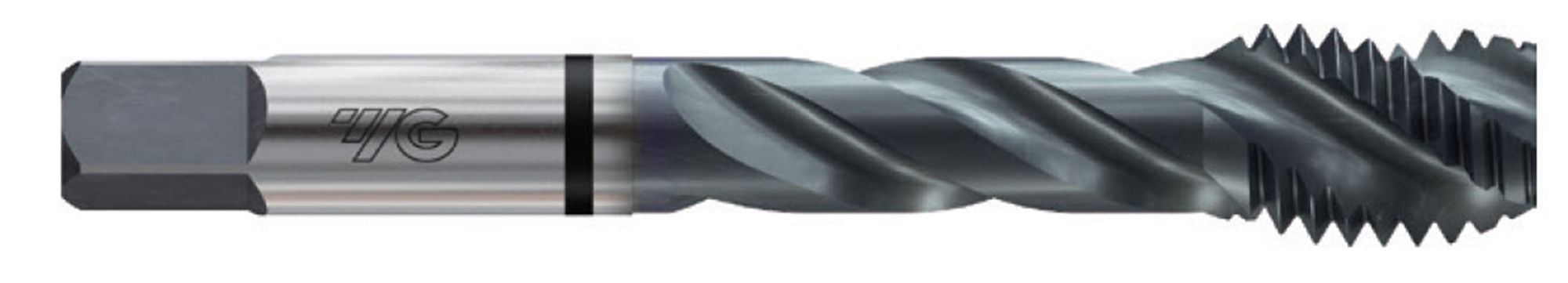

Picture of YG-1 T7645C 5/8-11.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS-EX TiCN

YG-1 T7645C 5/8-11.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS-EX TiCN

Part Number: YG-T7645C
Looking for alternatives…
Find a drill for this tap 5/8" × 11.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1166061
Vendor: Sussex Tool and Supply
$59.37

Description

YG-1 T7645C 5/8"x11.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS-EX TiCN H5/GH5 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 3.8120 96.82MM
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 4
Thread Pitch 11.00TPI
Thread Size 5/8"
Tap Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-EX
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
