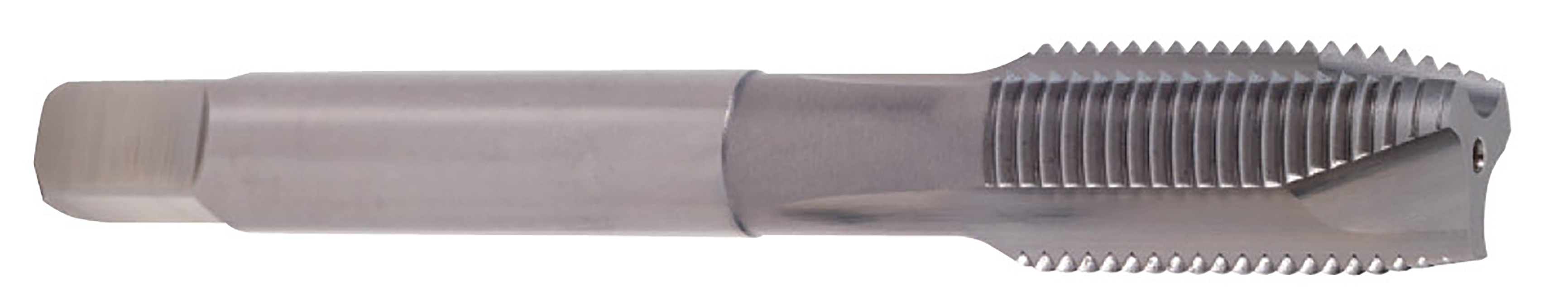

Picture of YG-1 T7415172 M2.5-0.45mm STI Plug 4.0P-5.0P HSS Uncoated

YG-1 T7415172 M2.5-0.45mm STI Plug 4.0P-5.0P HSS Uncoated

Part Number: YG-T7415172
Looking for alternatives…
Find a drill for this tap M2.5 × 0.45MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1165941
Vendor: Sussex Tool and Supply
$23.11

Description

YG-1 T7415172 M2.5x0.45MM STI Plug 4.0P-5.0P HSS Uncoated D2 STI-M Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type STI-M
Tap Style STI
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 1.9370 49.20MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 4
Thread Pitch 0.45MM
Thread Size M2.5
Tap Drill Range 0.1024 2.60MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D2
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
