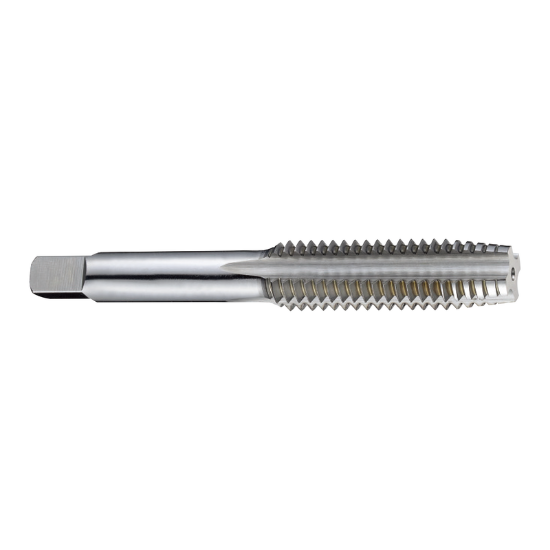

YG-1 T7326247 No.6-32.00TPI Over Sized Plug Plug 5.0P HSS-EX Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7326247
Delivery date: 3-5 days
$6.80
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#4, Material#10
Shipping State Illinois
Sold by Pieces 1
Application Over Sized Tapping, Through Hole Tapping, Plug Tapping, Tapping
Package Size 1
Performance Rating General Performance
Additional Key Information 1 Tapping
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Style Over Sized Plug
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Length Type Standard
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Type Plug
Tap Chamfer 5.0P
Thread Type NC/UNC
Tool Material Steel
Thread Pitch 32.00TPI
Thread Limit GH11 +0.005"
Dimension Standard ANSI/ANSI
Thread Size No.6
Flutes/Inserts 3
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Machine Side TAP0.110x0.140
Shank/Pilot Dia 0.1410 3.58MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-EX
Industry-Specific Applications
Job Shop Yes
