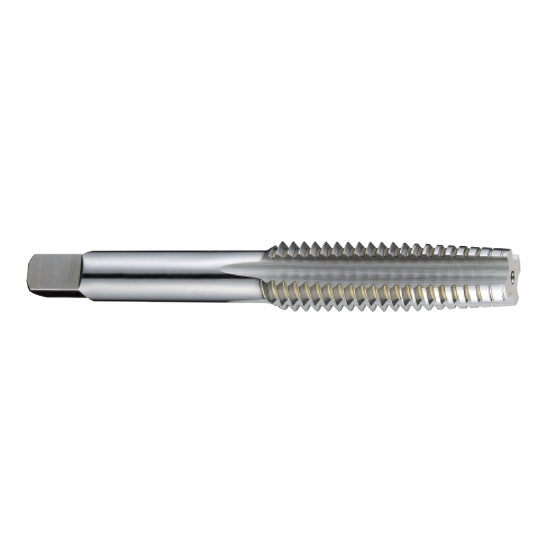

YG-1 T7316346H2 No.10-32.00TPI Hand Tap Taper 9.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7316346H2
Delivery date: 3-5 days
$6.26
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Material # Material#20, Material#16, Material#22, Material#2, Material#8
Shipping State Illinois
Sold by Pieces 1
Application Taper Tapping, Cut Tapping, Tapping
Additional Key Information 1 Tapping
Performance Rating General Performance
Uncategorized
Made In USA No
Dimensional Specifications
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Tap Square 0.1520
Thread Limit H3/GH3
Flutes/Inserts 4
Length Type Standard
Tap Chamfer 9.0P
Tap Style Hand Tap
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Tap Type Taper
Machine Side TAP0.152x0.194
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
