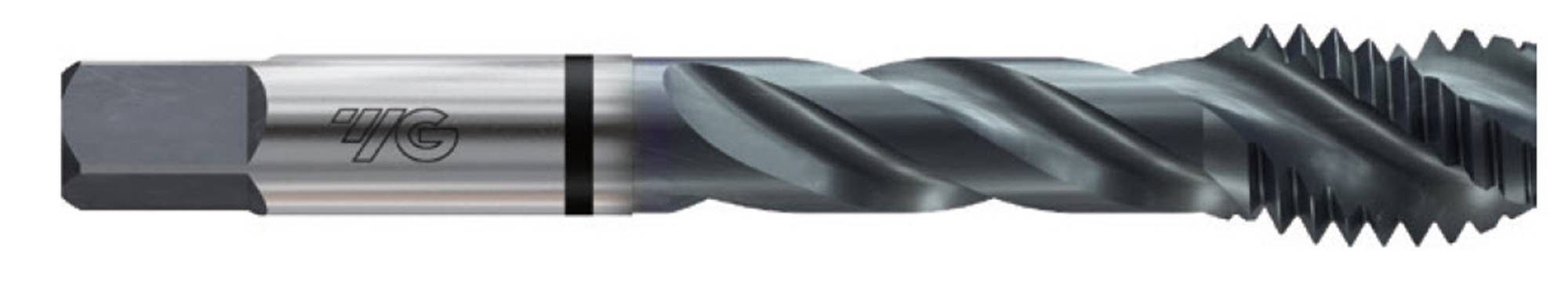

Picture of YG-1 T7302C No.8-36.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS-EX TiCN

YG-1 T7302C No.8-36.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS-EX TiCN

Part Number: YG-T7302C
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$16.31
SKU: 1165549

Description

YG-1 T7302C No.8x36.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS-EX TiCN H2/GH2 NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 2.1250 53.98MM
Shank/Pilot Dia 0.2200 5.59MM
Flutes/Inserts 3
Thread Pitch 36.00TPI
Thread Size No.8
Tap Drill Range 0.1350 3.43MM - 0.1421 3.61MM
Tap Square 0.1650
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H2/GH2
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-EX
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
