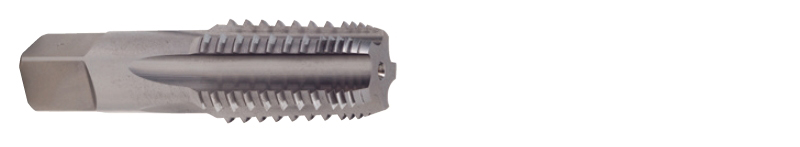

Picture of YG-1 T6505560 1/2-14.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSS Steam Oxide

YG-1 T6505560 1/2-14.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSS Steam Oxide

Part Number: YG-T6505560

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1165207
Vendor: Sussex Tool and Supply
$77.15
YG-1 T6505560 1/2"x14.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSS Steam Oxide PIPE NPT/NPTF/ANPT Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Coating Steam Oxide
Overall Length 3.1250 79.38MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Flutes/Inserts 5
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 14.00TPI
Thread Type NPT/NPTF/ANPT
Thread Size 1/2"
Thread Limit PIPE
Tap Style Pipe Skip Tooth
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 17.8500 453.39MM
Tap Square 0.5150
Tap Chamfer 2.0P-3.0P
