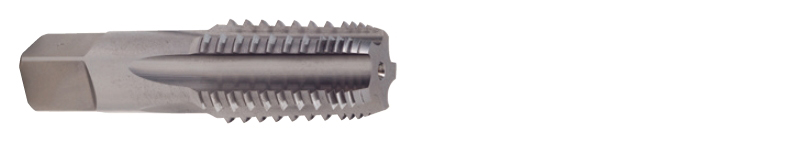

Picture of YG-1 T6505200 1/8-27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSS-EX Steam Oxide

YG-1 T6505200 1/8-27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSS-EX Steam Oxide

Part Number: YG-T6505200
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
1/8" × 27.00TPI Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1165203
Vendor: Sussex Tool and Supply
$44.70

Description

YG-1 T6505200 1/8"x27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSS-EX Steam Oxide PIPE NPT/NPTF/ANPT Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Tap Style Pipe Skip Tooth
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.1250 53.98MM
Shank/Pilot Dia 0.3120 7.92MM
Flutes/Inserts 3
Thread Pitch 27.00TPI
Thread Size 1/8"
Tap Drill Range 0.3319 8.43MM
Tap Square 0.2340
Performance & Capacity
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-EX
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
