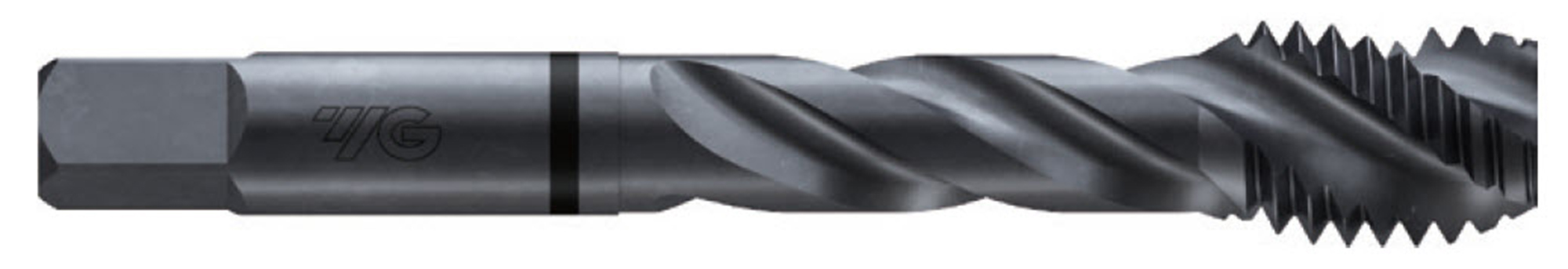

Picture of YG-1 T5788S M24-3.00mm Cut Spiral Flute Plug 4.0P-5.0P HSS-EX Steam Oxide

YG-1 T5788S M24-3.00mm Cut Spiral Flute Plug 4.0P-5.0P HSS-EX Steam Oxide

Part Number: YG-T5788S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164835
Vendor: Sussex Tool and Supply
$130.56
YG-1 T5788S M24x3.00MM Cut Spiral Flute Plug 4.0P-5.0P HSS-EX Steam Oxide D8 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-EX
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 4.9100 124.71MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7600 19.30MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 3.00MM
Thread Type METRIC
Thread Size M24
Thread Limit D8
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.8220 20.88MM - 0.8528 21.66MM
Tap Square 0.5700
Tap Chamfer 4.0P-5.0P
