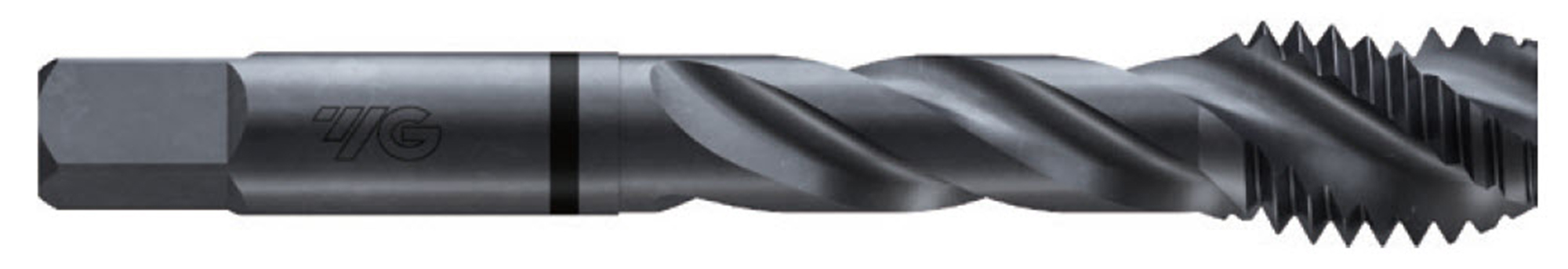

Picture of YG-1 T5747S M22-2.50mm Cut Spiral Flute Plug 4.0P-5.0P HSS-EX Steam Oxide

YG-1 T5747S M22-2.50mm Cut Spiral Flute Plug 4.0P-5.0P HSS-EX Steam Oxide

Part Number: YG-T5747S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164829
Vendor: Sussex Tool and Supply
$95.94
YG-1 T5747S M22x2.50MM Cut Spiral Flute Plug 4.0P-5.0P HSS-EX Steam Oxide D7 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-EX
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 4.6870 119.05MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.50MM
Thread Type METRIC
Thread Size M22
Thread Limit D7
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.7638 19.40MM - 0.7894 20.05MM
Tap Square 0.5230
Tap Chamfer 4.0P-5.0P
