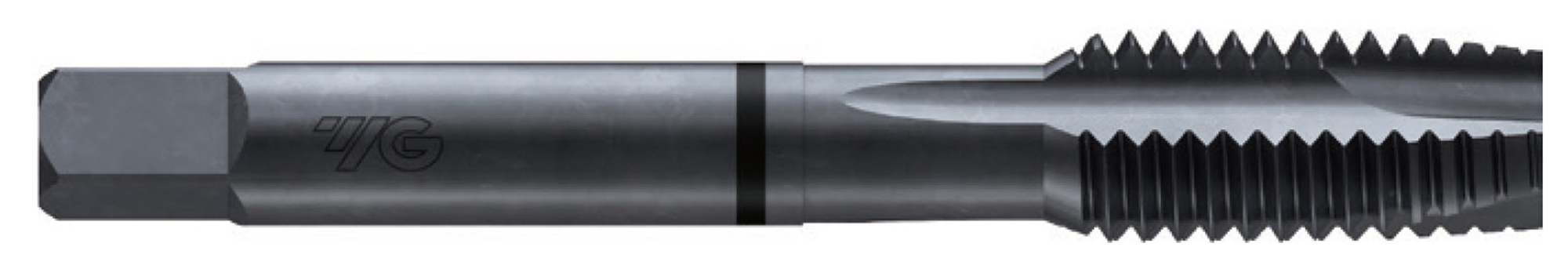

Picture of YG-1 T4483S 3/8-16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide

YG-1 T4483S 3/8-16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide

Part Number: YG-T4483S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164709
Vendor: Sussex Tool and Supply
$15.00
YG-1 T4483S 3/8"x16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-EX
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 2.9370 74.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Thread Size 3/8"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2860
Tap Chamfer 4.0P-5.0P
