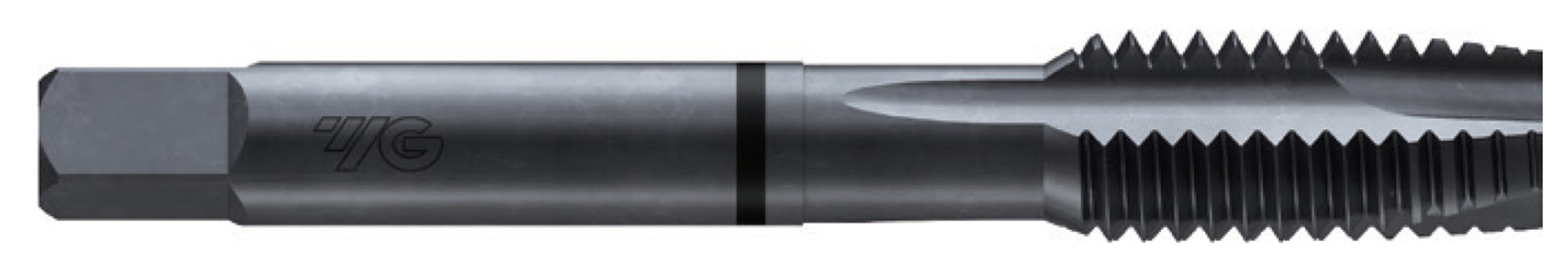

Picture of YG-1 T4465S 5/16-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide

YG-1 T4465S 5/16-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide

Part Number: YG-T4465S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164706
Vendor: Sussex Tool and Supply
$13.29
YG-1 T4465S 5/16"x24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide H5/GH5 NF/UNF/UNEF Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-EX
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Thread Size 5/16"
Thread Limit H5/GH5
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Square 0.2380
Tap Chamfer 4.0P-5.0P
