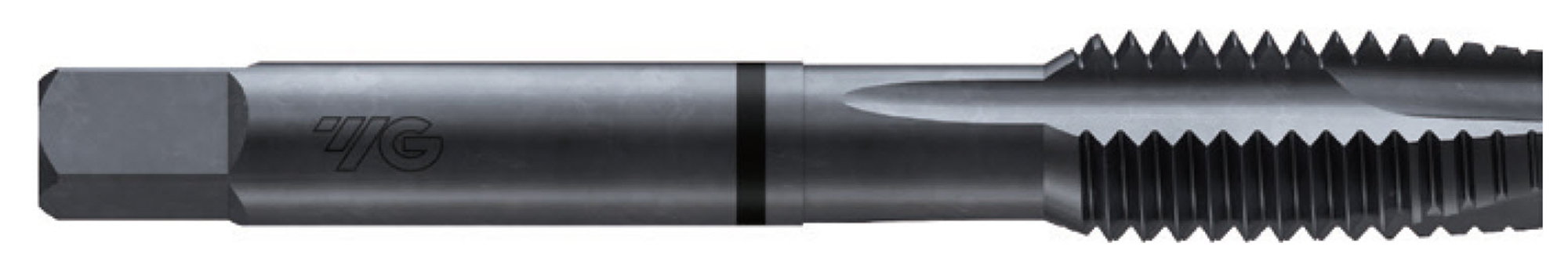

Picture of YG-1 T4182S No.4-48.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide

YG-1 T4182S No.4-48.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide

Part Number: YG-T4182S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164652
Vendor: Sussex Tool and Supply
$12.79
YG-1 T4182S No.4x48.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide H3/GH3 NF/UNF/UNEF Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-EX
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 1.8750 47.63MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 48.00TPI
Thread Type NF/UNF/UNEF
Thread Size No.4
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0902 2.29MM - 0.0957 2.43MM
Tap Square 0.1100
Tap Chamfer 4.0P-5.0P
