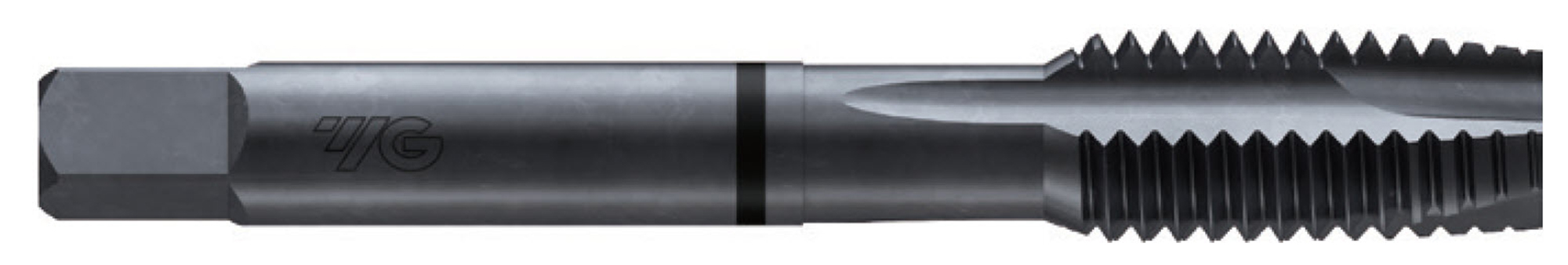

Picture of YG-1 T4162S No.4-40.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide

YG-1 T4162S No.4-40.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide

Part Number: YG-T4162S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164649
Vendor: Sussex Tool and Supply
$12.79
YG-1 T4162S No.4x40.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-EX
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 1.8750 47.63MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 40.00TPI
Thread Type NC/UNC
Thread Size No.4
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0860 2.18MM - 0.0927 2.35MM
Tap Square 0.1100
Tap Chamfer 4.0P-5.0P
