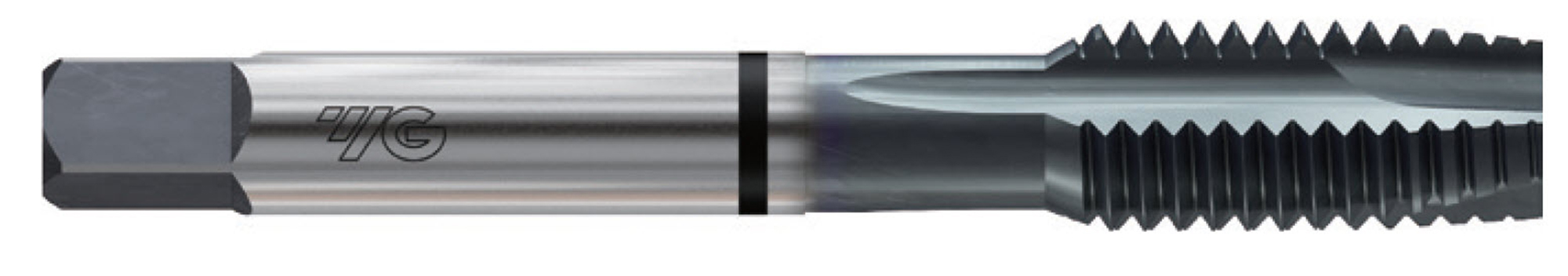

Picture of YG-1 T3435C M10-1.25mm Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiCN

YG-1 T3435C M10-1.25mm Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiCN

Part Number: YG-T3435C
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1164606
Vendor: Sussex Tool and Supply
$20.20

Description

YG-1 T3435C M10x1.25MM Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiCN D5 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 2.9370 74.60MM
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Thread Pitch 1.25MM
Thread Size M10
Tap Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Tap Square 0.2860
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-EX
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
