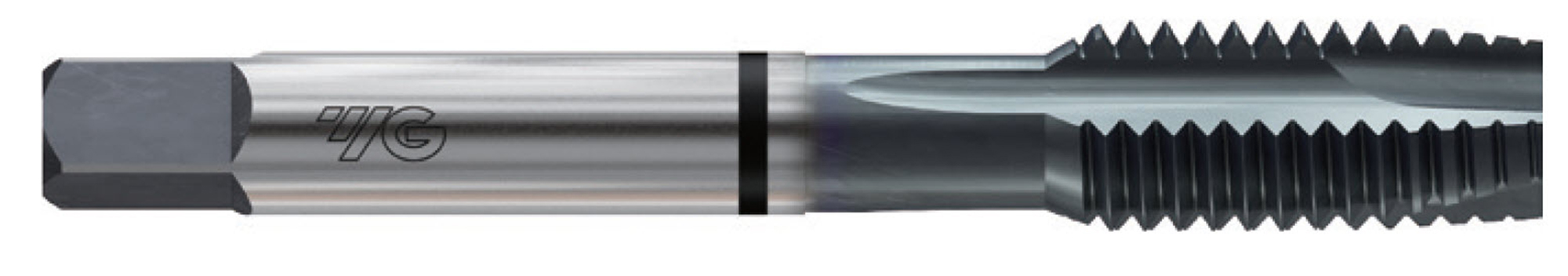

Picture of YG-1 T3244C M4-0.70mm Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiCN

YG-1 T3244C M4-0.70mm Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiCN

Part Number: YG-T3244C
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$14.87
SKU: 1164585

Description

YG-1 T3244C M4x0.70MM Cut Spiral Point Plug 4.0P-5.0P HSS-EX TiCN D4 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 2.1250 53.98MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Thread Pitch 0.70MM
Thread Size M4
Tap Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1520
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-EX
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
