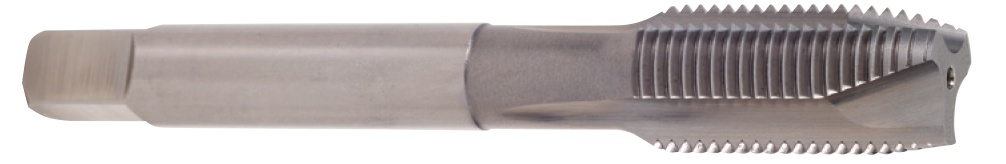

Picture of YG-1 T2496764 7/8-14.00TPI Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 T2496764 7/8-14.00TPI Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

Part Number: YG-T2496764

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164513
Vendor: Sussex Tool and Supply
$109.31
YG-1 T2496764 7/8"x14.00TPI Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated H4/GH4 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating Graphite, Aluminum, Brass, Plastic
Overall Length 4.6870 119.05MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type NF/UNF/UNEF
Thread Size 7/8"
Thread Limit H4/GH4
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5230
Tap Chamfer 4.0P-5.0P
