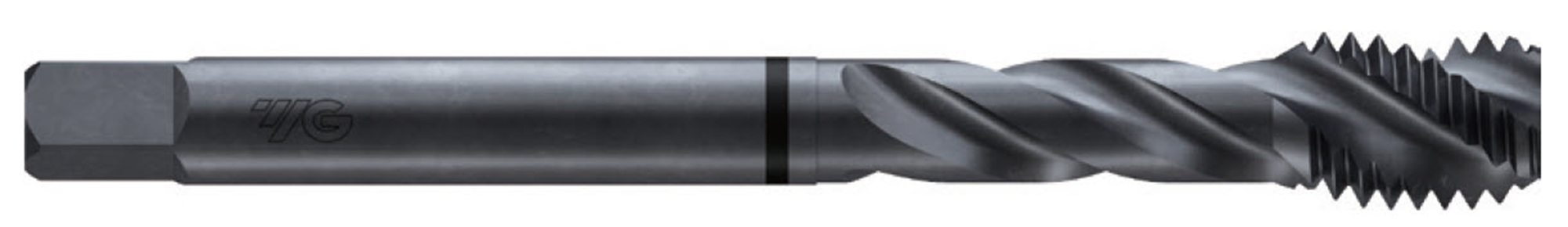

Picture of YG-1 T1786S 1-8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Steam Oxide

YG-1 T1786S 1-8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Steam Oxide

Part Number: YG-T1786S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164415
Vendor: Sussex Tool and Supply
$137.64
YG-1 T1786S 1"x8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Steam Oxide H6/GH6 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-EX
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 6.2990 159.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 8.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1"
Thread Limit H6/GH6
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.8701 22.10MM - 0.9024 22.92MM
Tap Square 0.6000
Tap Chamfer 2.0P-3.0P
