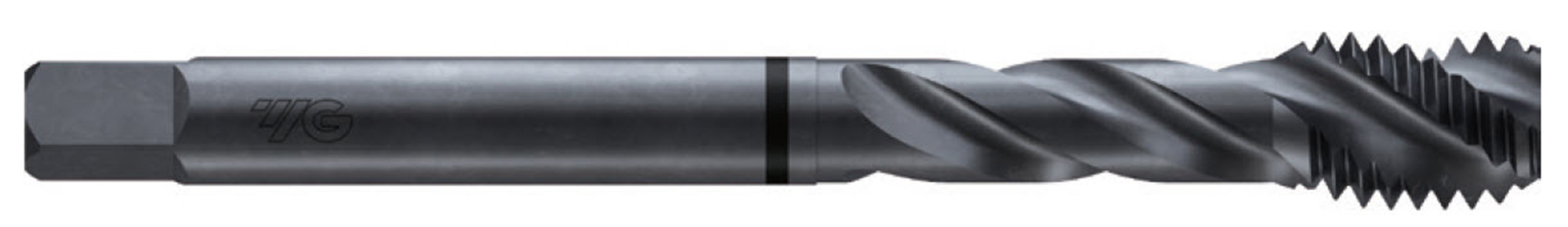

Picture of YG-1 T1766S 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Steam Oxide

YG-1 T1766S 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Steam Oxide

Part Number: YG-T1766S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164413
Vendor: Sussex Tool and Supply
$100.85
YG-1 T1766S 7/8"x14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Steam Oxide H6/GH6 NF/UNF/UNEF Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-EX
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 4.9210 124.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 7/8"
Thread Limit H6/GH6
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5230
Tap Chamfer 2.0P-3.0P
