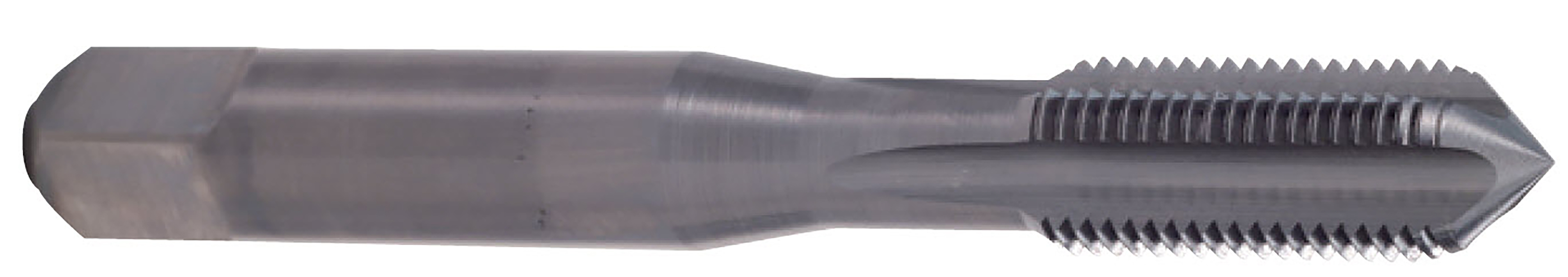

Picture of YG-1 T0C01482 3/8-16.00TPI Cut Straight Flute Mod Bottom 2.5P-3.0P Carbide Uncoated

YG-1 T0C01482 3/8-16.00TPI Cut Straight Flute Mod Bottom 2.5P-3.0P Carbide Uncoated

Part Number: YG-T0C01482

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164360
Vendor: Sussex Tool and Supply
$188.56
YG-1 T0C01482 3/8"x16.00TPI Cut Straight Flute Mod Bottom 2.5P-3.0P Carbide Uncoated 2B NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat Carbide
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Ductile Iron, Graphite, Gray Iron, Plastic
Overall Length 2.9370 74.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit 2B
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2860
Tap Chamfer 2.5P-3.0P
