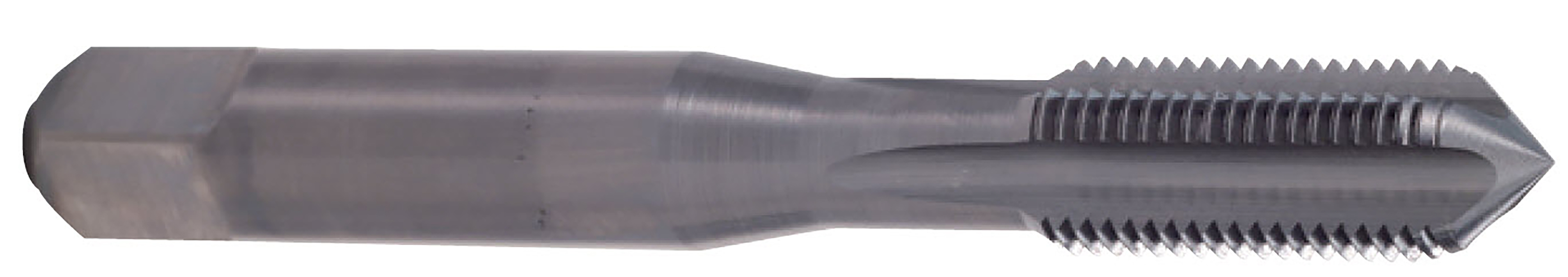

Picture of YG-1 T0C01322 No.10-24.00TPI Cut Straight Flute Mod Bottom 2.5P-3.0P Carbide Uncoated

YG-1 T0C01322 No.10-24.00TPI Cut Straight Flute Mod Bottom 2.5P-3.0P Carbide Uncoated

Part Number: YG-T0C01322

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164353
Vendor: Sussex Tool and Supply
$101.53
YG-1 T0C01322 No.10x24.00TPI Cut Straight Flute Mod Bottom 2.5P-3.0P Carbide Uncoated 2B NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat Carbide
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Ductile Iron, Graphite, Gray Iron, Plastic
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 24.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.10
Thread Limit 2B
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Square 0.1520
Tap Chamfer 2.5P-3.0P
