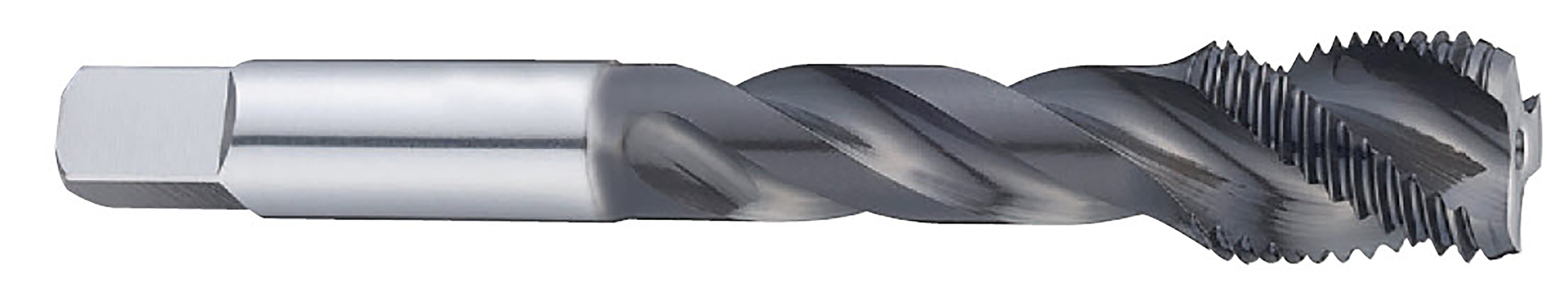

Picture of YG-1 ST562 1/2-13.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

YG-1 ST562 1/2-13.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

Part Number: YG-ST562
Tool Cross-Reference
Looking for alternatives…
STI tap drill
1/2" × 13.00TPI — 1/2-13 STI
Drill for: Aluminum
0.5156" 33/64
204 drills available
See all drills at 0.5156" →
Drill for: Steel, Manganese, Plastic
0.5312" 17/32
408 drills available
See all drills at 0.5312" →

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1164345
Vendor: Sussex Tool and Supply
$36.64

Description

YG-1 ST562 1/2"x13.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick 2B STI-I Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type STI-I
Tap Style STI
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 3.3750 85.73MM
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Thread Pitch 13.00TPI
Thread Size 1/2"
Tap Drill Range 0.5236 13.30MM
Tap Square 0.3600
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Coating Hardslick
Standards & Identification
Dimension Standard ANSI/ANSI
