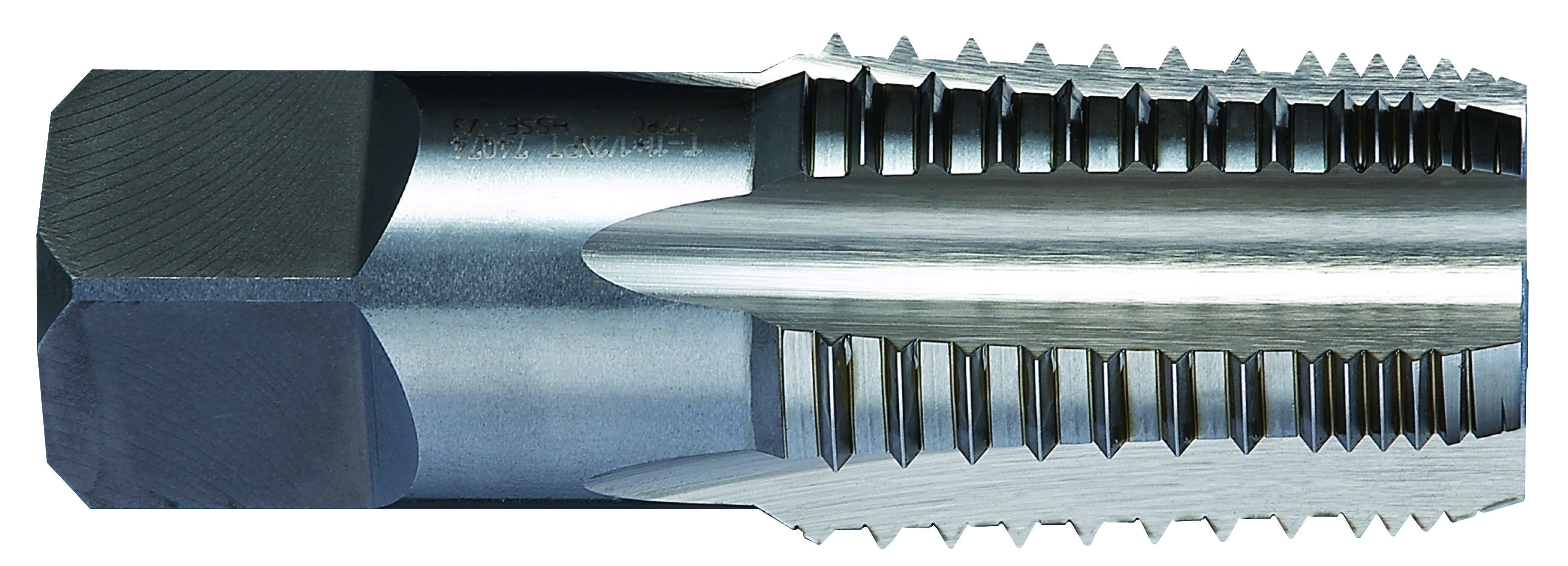

Picture of YG-1 S2210 1/8-27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 TiCN

YG-1 S2210 1/8-27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 TiCN

Part Number: YG-S2210

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1164295
Vendor: Sussex Tool and Supply
$41.41
YG-1 S2210 1/8"x27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 TiCN PIPE NPT/NPTF/ANPT Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Coating TICN
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3120 7.92MM
Flutes/Inserts 5
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 27.00TPI
Thread Type NPT/NPTF/ANPT
Thread Size 1/8"
Thread Limit PIPE
Tap Style Pipe Skip Tooth
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3319 8.43MM
Tap Square 0.2340
Tap Chamfer 2.0P-3.0P
