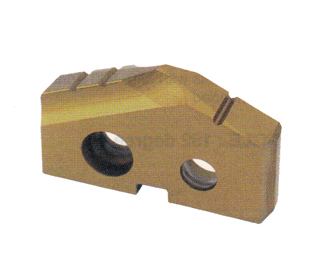

Picture of YG-1 S12063 43/64 Premium Cobalt(M48) Throw-Away Drill InsertS TICN Coated

YG-1 S12063 43/64 Premium Cobalt(M48) Throw-Away Drill InsertS TICN Coated

Part Number: YG1S12063
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$38.34
SKU: 1150217

Description

YG-1 S12063 Spade Drills 43/64 PREMIUM COBALT(M48) THROW-AWAY DRILL InsertS TICN COATED Premium Cobalt M48 Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Spade Insert
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Flutes/Inserts 2
Tool Dia 0.6719 17.06MM - 43/64
Geometry & Angles
Included Angle 132°
Performance & Capacity
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Cut Dia Min 0.6719 17.07MM - 43/64
Materials & Finish
Tool Material Premium Cobalt M48
Cutting Edge Mat Premium Cobalt M48
Coating TICN
