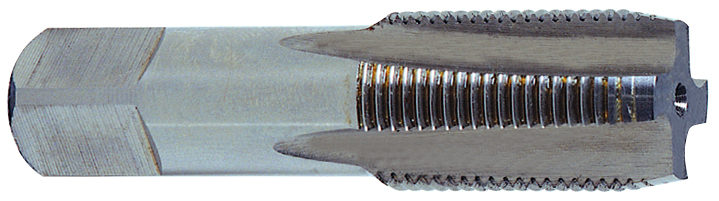

Picture of YG-1 S0D20 2-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Nitride + Steam Oxide

YG-1 S0D20 2-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Nitride + Steam Oxide

Part Number: YG-S0D20
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
2" × 11.50TPI Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1164284
Vendor: Sussex Tool and Supply
$460.40

Description

YG-1 S0D20 2"x11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Nitride + Steam Oxide PIPE NPT/NPTF/ANPT Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction STRAIGHT
Tap Style Pipe Straight Flute
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.2500 107.95MM
Shank/Pilot Dia 1.8750 47.63MM - 1-7/8
Flutes/Inserts 7
Thread Pitch 11.50TPI
Thread Size 2"
Tap Drill Range 2.1874 55.56MM
Tap Square 1.4060
Performance & Capacity
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
